N7 Z890

Intel® Z890 ATX Gaming Wi-Fi Motherboard with Full Cover

Precio de oferta$349.99
or
Color:White

Your Prepay and Save Options

Choose the plan that works best for you.

Month-to-Month

Cancel and return anytime with no fees. This option provides maximum flexibility with no long-term obligations.

Prepaid Terms

Prepay for a multi-month term (3, 6, 12 months) and lock in a lower effective monthly rate.

When your term ends, you have simple options:

1

Month-to-Month: By default, your subscription automatically converts to the month to month rate requiring no action from you.

2

Prepay Again: Alternatively, you can choose to prepay for another 3, 6, or 12 month term.

3

End Subscription: Cancel and return with no fees.
The NZXT N7 Z890 is a black and white motherboard featuring angular heatsinks, multiple RAM slots, PCIe 5.0 slots, and various connectors—engineered for high-performance desktop PCs and advanced gaming.
N7 Z890 Precio de oferta$349.99

Overview

La N7 Z890 combina un rendimiento de juego avanzado con un diseño elegante y refinado. Diseñada para procesadores Intel® Core™ Ultra (Serie 2), incluye una entrega de energía robusta, térmicas optimizadas y conectividad de alta velocidad con Thunderbolt™ 4, DDR5 y PCIe 5.0. Una cubierta completa de la PCB mejora la estética, creando una base limpia y moderna para cualquier configuración

  • Socket Intel LGA 1851: Diseñado para procesadores Intel® Core™ Ultra (Serie 2), con socket RL-ILM que reduce la presión de montaje y mejora el contacto térmico.
  • Potencia óptima: Diseño de fase de potencia 16+1+2 con DrMOS de 80 A y PCB de seis capas con cobre de 2 onzas de baja pérdida que garantizan una entrega de energía estable.
  • Gestión térmica: Disipadores para VRM y SSD NVMe PCIe 5.0 que optimizan la eficiencia de refrigeración y mantienen bajas las temperaturas durante cargas intensas.
  • Expansión PCIe 5.0: Una ranura PCIe® 5.0 x16 para GPU y dos ranuras PCIe® 4.0 x16 para expansión adicional de alta velocidad.
  • Almacenamiento de alta velocidad: Una ranura M.2 PCIe® 5.0 y cuatro M.2 PCIe® 4.0 ofrecen velocidades de almacenamiento ultra rápidas, reduciendo los tiempos de carga y mejorando la eficiencia.
  • Memoria DDR5: Cuatro ranuras DIMM de doble canal que soportan velocidades DDR5 de más de 8000 MT/s, proporcionando multitarea más rápida y mejor capacidad de respuesta del sistema.
  • Conectividad rápida: Thunderbolt™ 4, Wi-Fi 6E y 2.5GbE permiten transferencias de datos a alta velocidad y redes de baja latencia.
  • Diseño elegante y minimalista: Una cubierta completa de la PCB ofrece una estética limpia y moderna que se integra perfectamente en cualquier configuración.



IMPORTANTE: Se requieren actualizaciones de BIOS y controladores

Actualiza tu BIOS y controladores para obtener la mejor compatibilidad, estabilidad y rendimiento.

  •  BIOS: Asegúrate de que tu placa base tenga la versión más reciente del BIOS para una estabilidad óptima del sistema y compatibilidad de hardware. Puedes verificar tu versión de BIOS en NZXT CAM.
  • Controladores: Mantén actualizados los controladores del chipset y del sistema para un rendimiento y fiabilidad óptimos.
  • Encuentra las últimas actualizaciones debajo de las preguntas frecuentes. ¿Necesitas ayuda? ¡El soporte de NZXT está aquí para ayudarte!

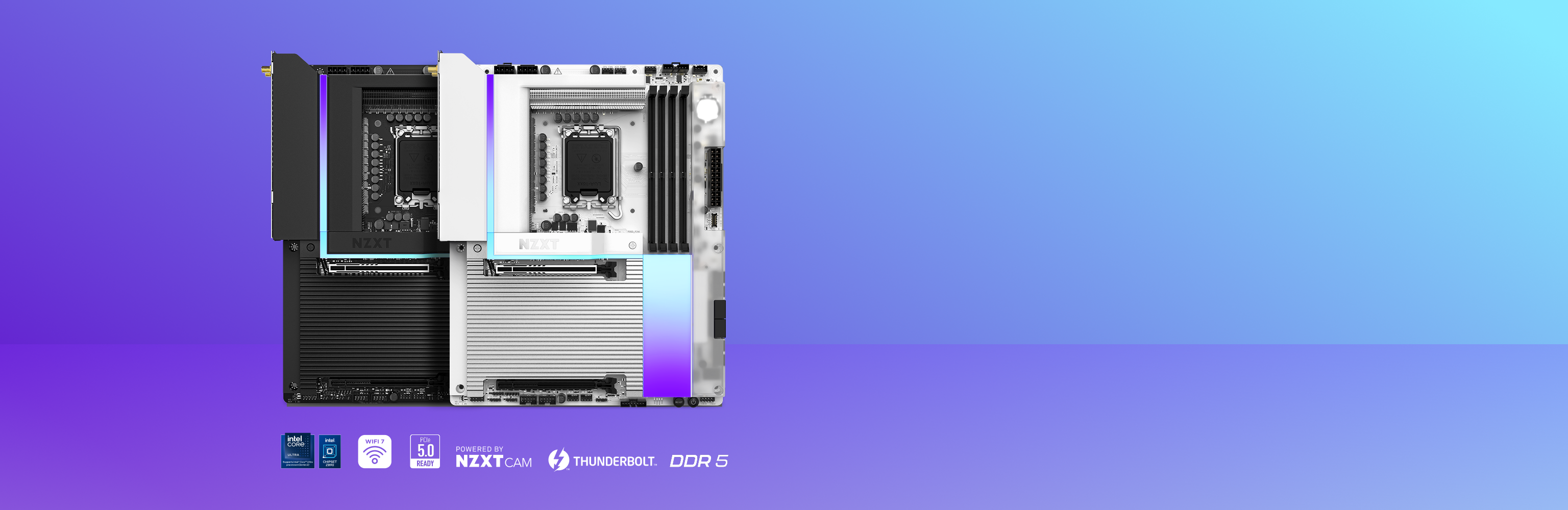

Two NZXT computer motherboards, one black and one white, are displayed side by side against a blue and purple gradient background with icons and text indicating support for Intel, WiFi 6E, NZXT CAM, Thunderbolt, and DDR5.

Polished & Powerful

The N7 Z890 pairs advanced gaming performance with a sleek, refined design. Built for Intel® Core™ Ultra (Series 2) processors, it features robust power delivery, optimized thermals, and high-speed connectivity with Thunderbolt™ 4, DDR5, and PCIe 5.0. A full PCB cover enhances aesthetics, creating a clean and modern foundation for any build.
A close-up image of a computer motherboard with labeled components: Fan & AIO Headers, VRM Heatsink, RL-ILM Socket Design, and PCIe 5.0 NVMe SSD Heatsink.
A white NZXT motherboard with labels pointing to the RGB headers near the top right and full covers around the lower half, highlighting key motherboard features.
A white NZXT motherboard with labeled features: 16+1+2 power phases, LGA 1851 socket for Intel Core Ultra CPUs (Series 2), and 4 DDR5 slots, with purple accents highlighting the areas.
A partial view of a computer motherboard highlighting 4 M.2 slots, 3 PCIe slots, and a 6-layer low-loss 2-oz copper PCB, with each feature labeled and indicated by arrows.
Six purple squares display white icons and text: Thunderbolt 4 (40 Gbps), USB 3.2 Type-C (20 Gbps), WIFI 6E, Realtek 2.5Gb Ethernet, Realtek ALC 1220 Audio, and Bluetooth 5.3.
Rear I/O panel of an NZXT motherboard, labeled with ports: HDMI, Thunderbolt 4, USB 3.2 Gen 2x2 Type-C, S/PDIF out, Wi-Fi 6E, USB 3.2 Gen 2 Type-C, 2.5GbE LAN, USB 3.2 Gen 1 Type-A, and audio jacks.
Tech Specs
CPU
Intel® Socket LGA 1851 for Intel® Core™ Ultra Processors (Series 2)
Chipset
Intel® Z890
DIMM Slots
4 x DDR5 only
Memory Architecture
Dual-Channel
Intel® Extreme Memory Profile (XMP) 3.0
Supported
OC Frequency
Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
PCIe 5.0 ×16 slot (PCIEX16_1)
1
PCIe 4.0 ×16 slots (PCIEX16_2 & PCIEX16_3)
2
M.2 Socket (Key E)
1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2)
M.2_1
Type 2280 (PCIe 5.0 ×4 mode)
M.2_2
Type 2280 (PCIe 4.0 ×4 mode)
M.2_3
Type 2280 (PCIe 4.0 ×4 mode)
M.2_4
Type 2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode)
SATA 6Gb/s ports
4
LAN
Realtek® 2.5G LAN
Dual-Band Wi-Fi 6E
Supported
Bluetooth
v5.3
Audio
Realtek® ALC1220 Audio Codec
Wireless antenna SMA connectors
2
HDMI™ port
1
Thunderbolt™ 4 ports
2
USB 3.2 Gen 2x2 Type-C® port
1
USB 3.2 Gen 2 ports
4
USB 3.2 Gen 1 Type-A® ports
3
Clear CMOS button
1
LAN (RJ45) port
1
Audio jacks
2
Optical S/PDIF out port
1
24-pin ATX power connector
1
8-pin ATX 12V power connector
2
4-pin CPU_FAN connector
1
4-pin AIO_PUMP connector
1
4-pin SYS_FAN connectors
3
NZXT RGB LED connector
1
5V ARGB LED connectors
2
NZXT 8-pin PWM connectors
2
USB 2.0 header
2 (Up to 4 USB 2.0 ports)
USB 3.2 Gen1 header
2 (Up to 4 USB 3.2 Gen 1 ports)
USB 3.2 Gen2x2 front panel header
1 (For USB Type-C)
Front panel audio connector
1
Power button
1
Reset button
1
Post LEDs
1
Operating System
Windows® 11/10 64-bit
Form Factor
ATX
Warranty
3 years
Model Number
N7-Z89XT-W1 (White) / N7-Z89XT-B1 (Black)
UPC
810074846264 (White) / 810074846271 (Black)
EAN
5056547206202 (White) / 5056547206219 (Black)
