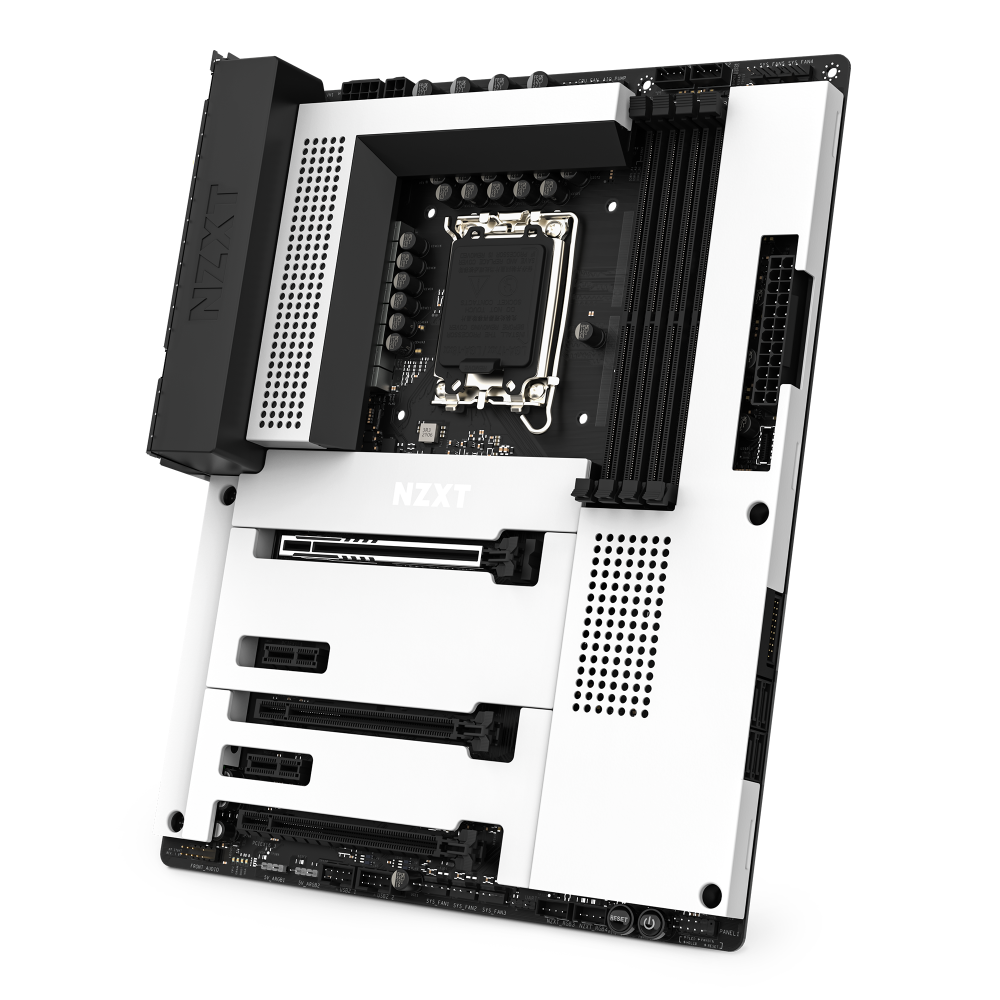

The NZXT N7 Z790 motherboard in black and white is shown at an angle, highlighting its PCIe and RAM slots, large heatsink, NZXT logo on the cover, and compatibility with NZXT CAM for easy customization.

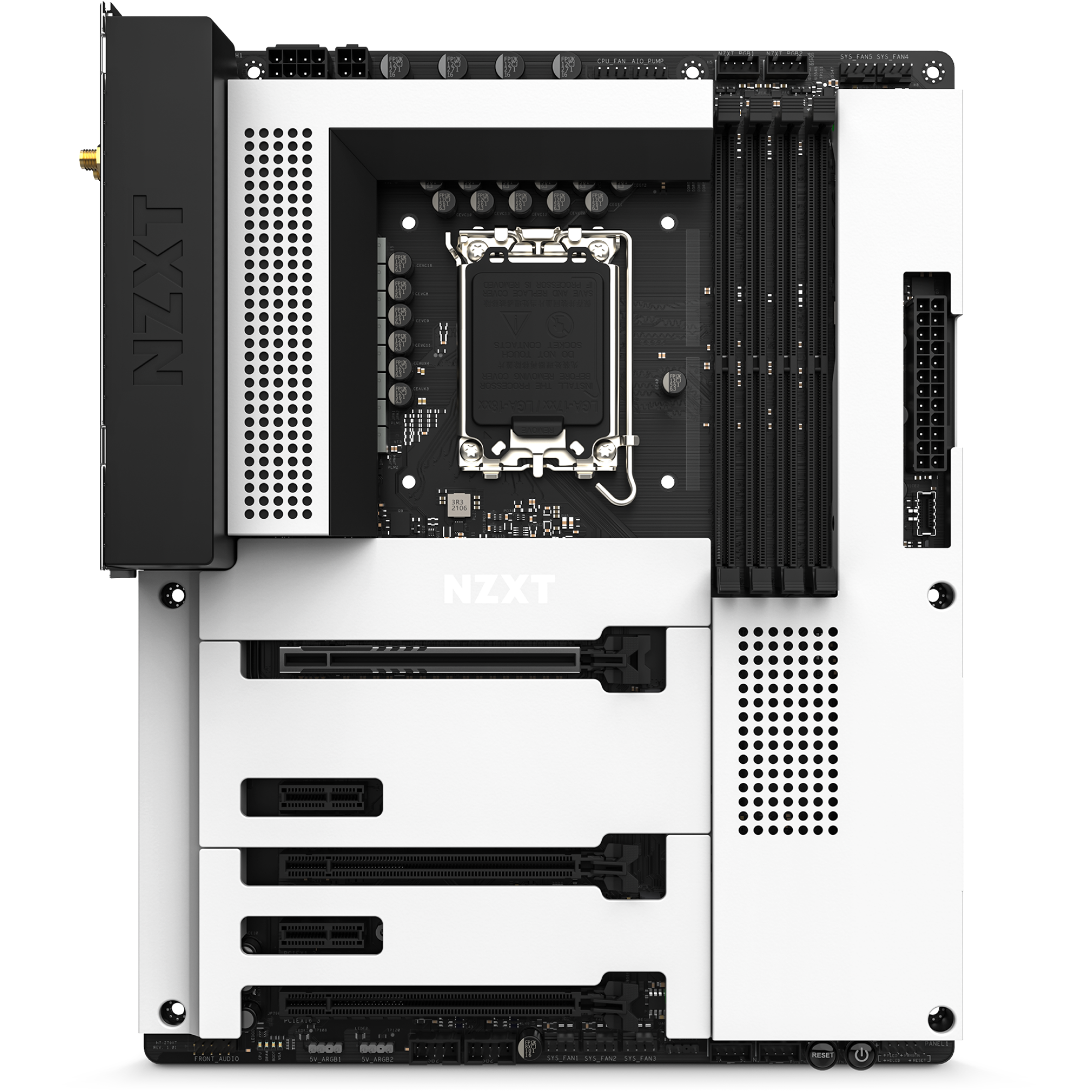

Top-down view of the NZXT N7 Z790 motherboard in white and black, featuring visible RAM slots, PCIe slots, a CPU socket, various connectors, and support for NZXT CAM-controlled RGB lighting.

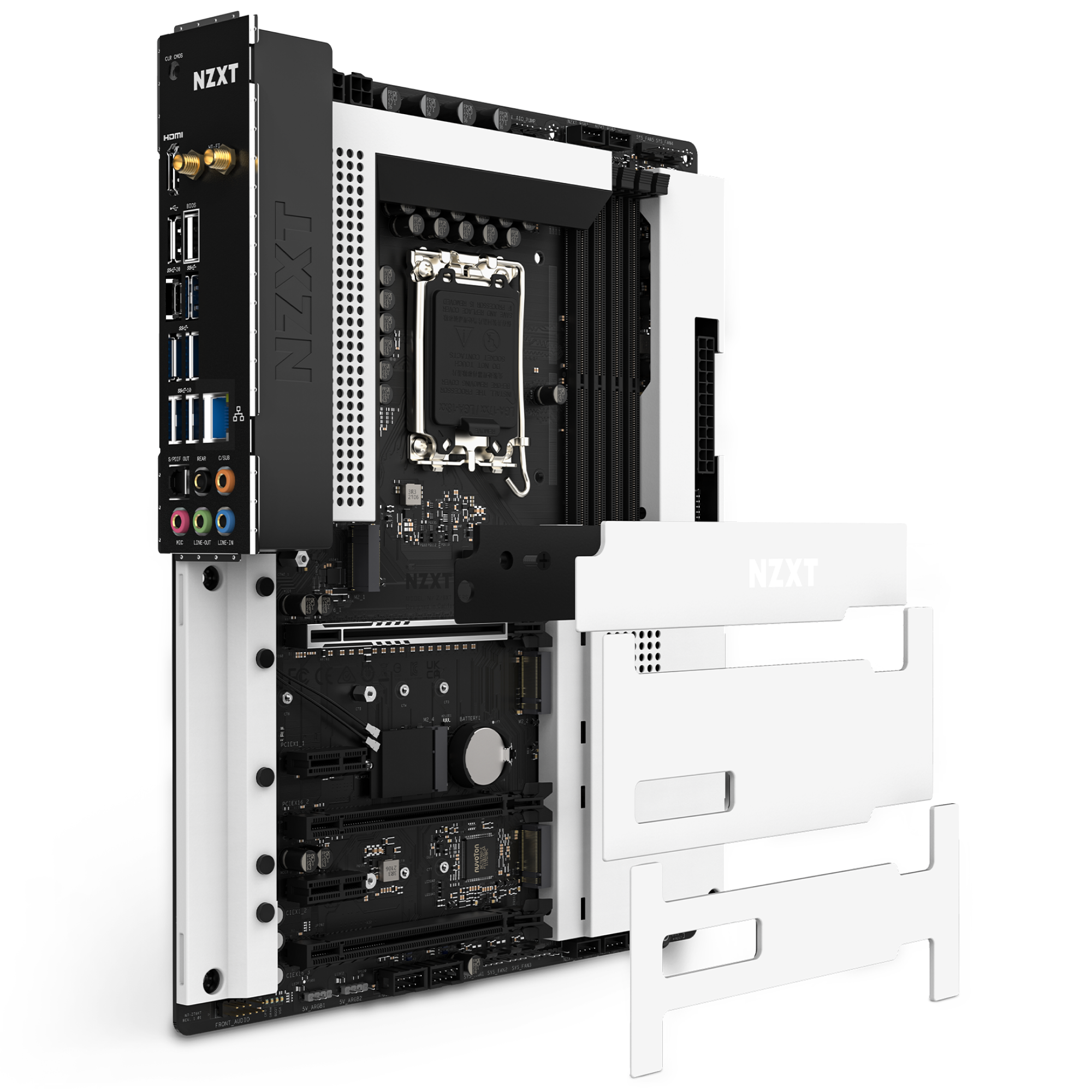

The NZXT N7 Z790 motherboard, shown in black and white with detachable white cover panels beside it, offers seamless NZXT CAM integration for RGB lighting control and features various ports and components.

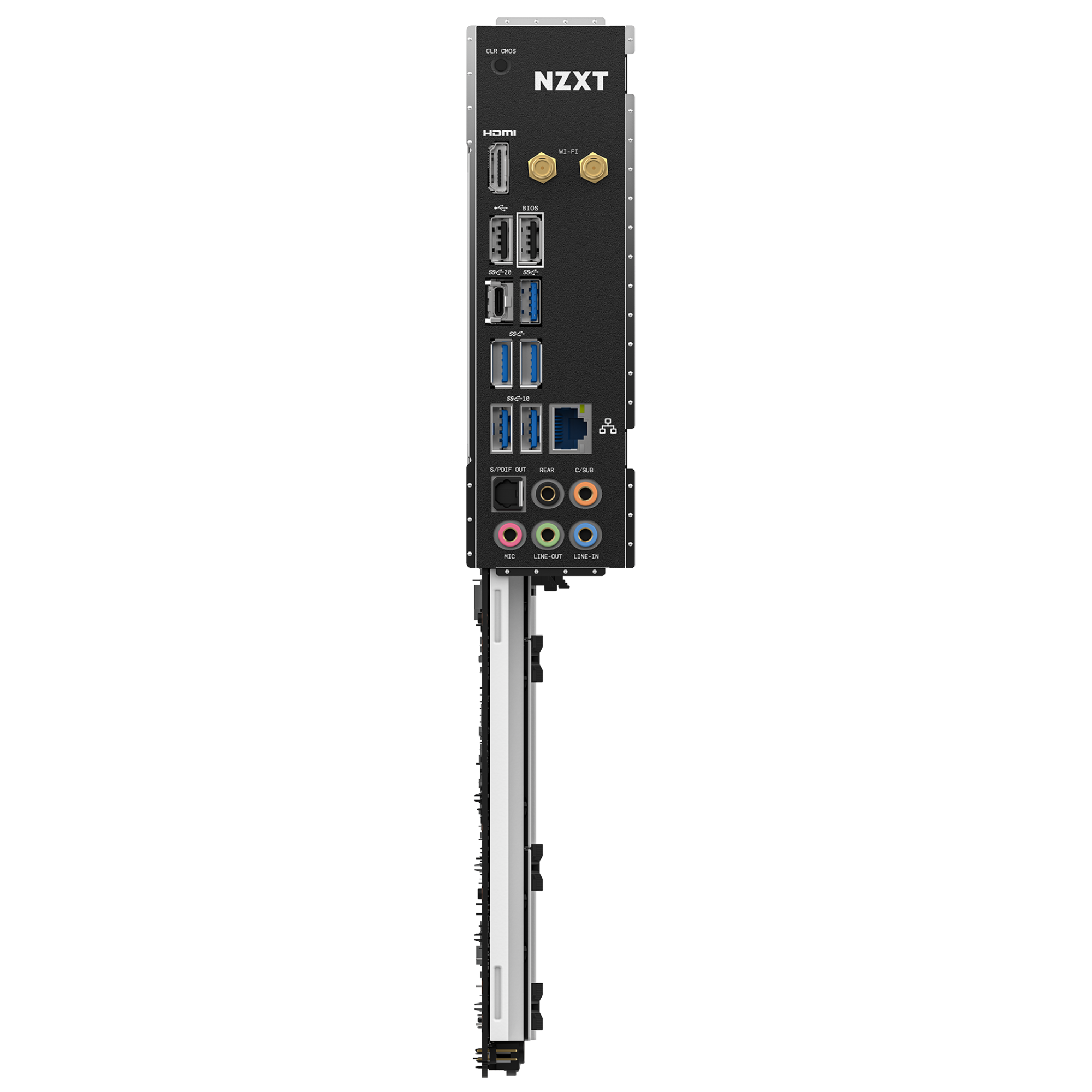

The NZXT N7 Z790 motherboard’s back I/O panel features HDMI, DisplayPort, USB ports, Ethernet, audio jacks, and antenna connectors, all vertically aligned against a black background.

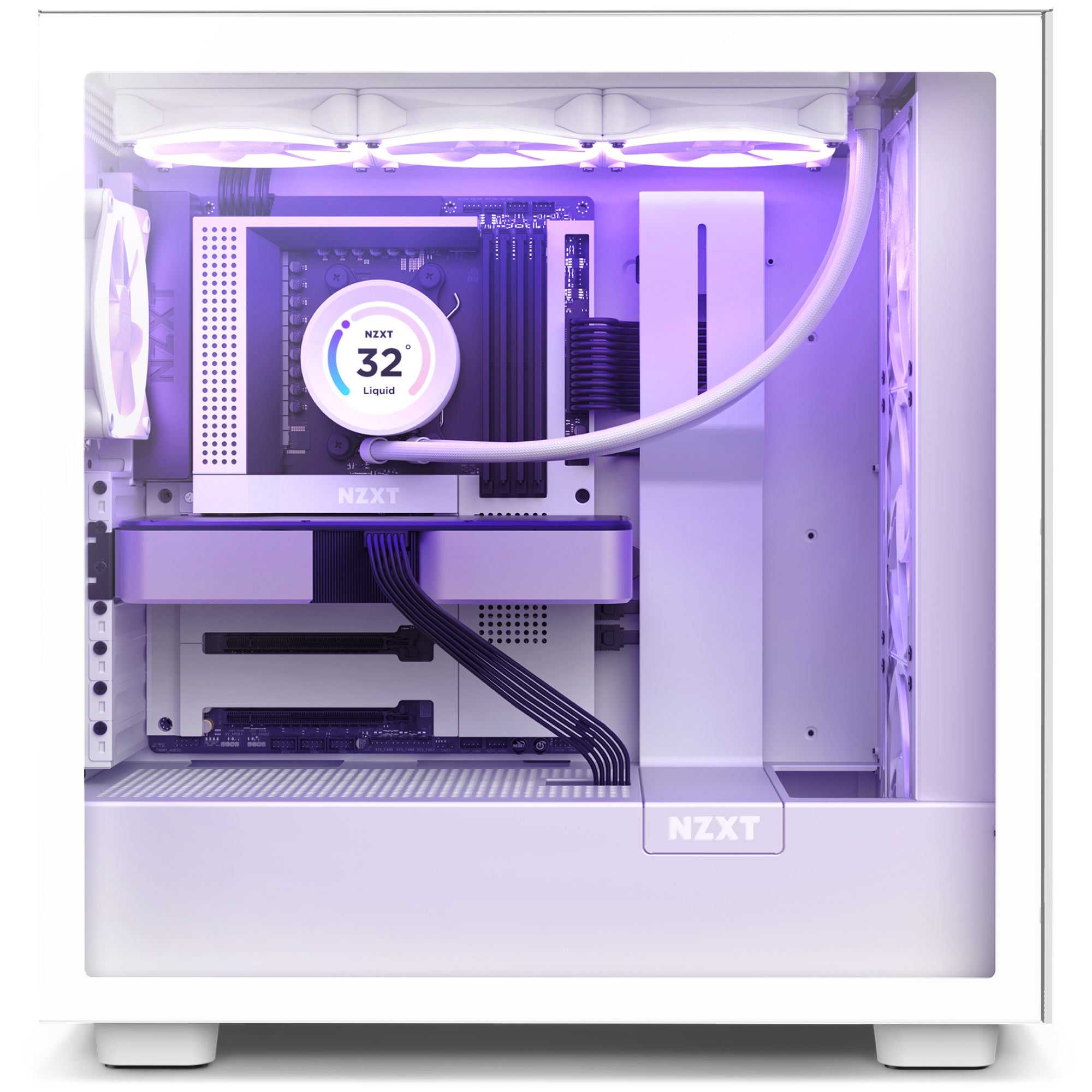

A white NZXT gaming PC case with an N7 Z790 motherboard, NZXT liquid cooler at 32°C, vivid purple RGB lighting, and tidy black cables visible through the side panel.

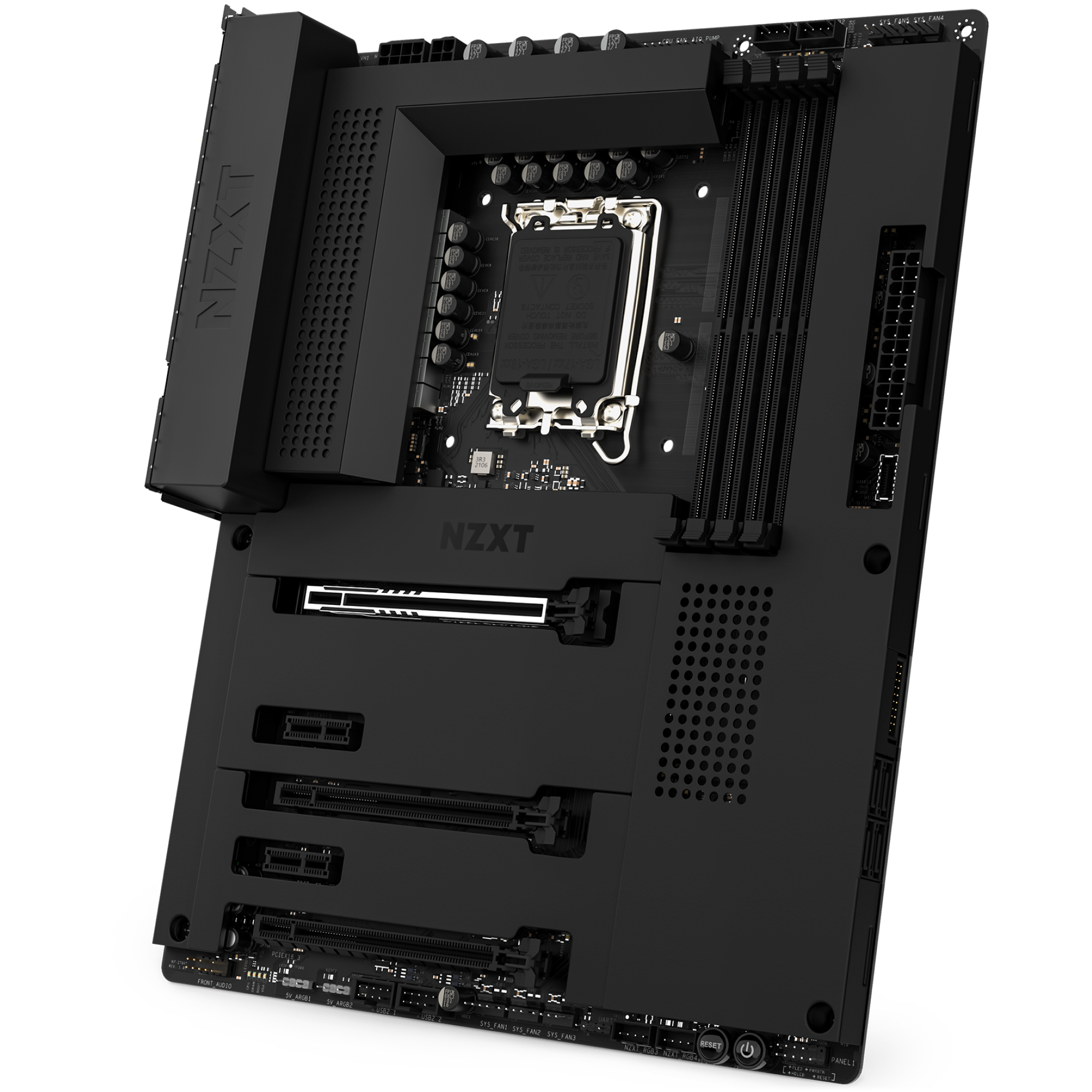

The NZXT N7 Z790 motherboard in black features memory slots, CPU socket, PCIe slots, connectors, sleek heatsinks, and a minimalist design. It supports NZXT CAM and customizable RGB lighting.

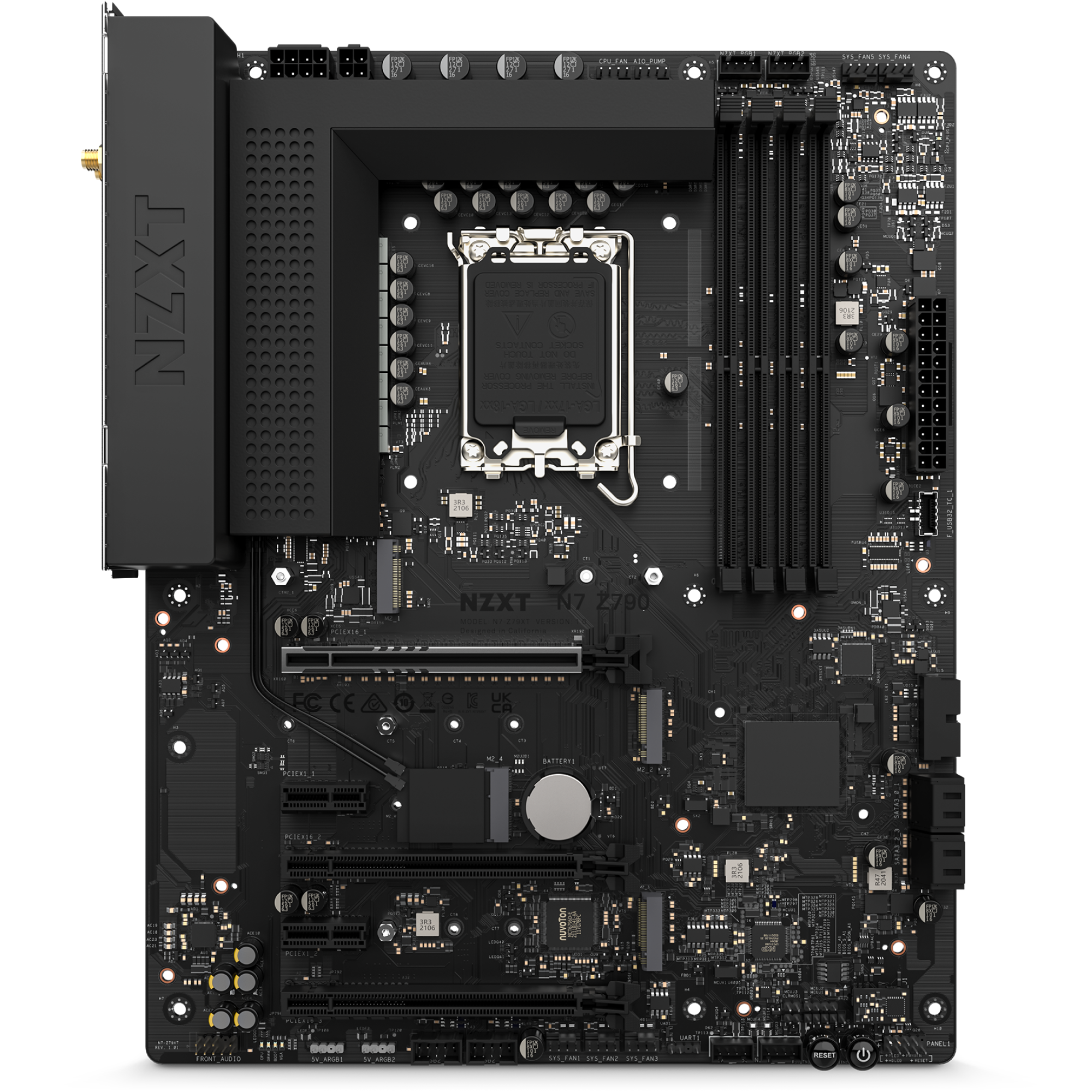

Top-down view of the NZXT N7 Z790 motherboard in black, highlighting its CPU socket, four RAM slots, multiple PCIe slots, connectors, chips on the detailed circuit board, and built-in RGB lighting.

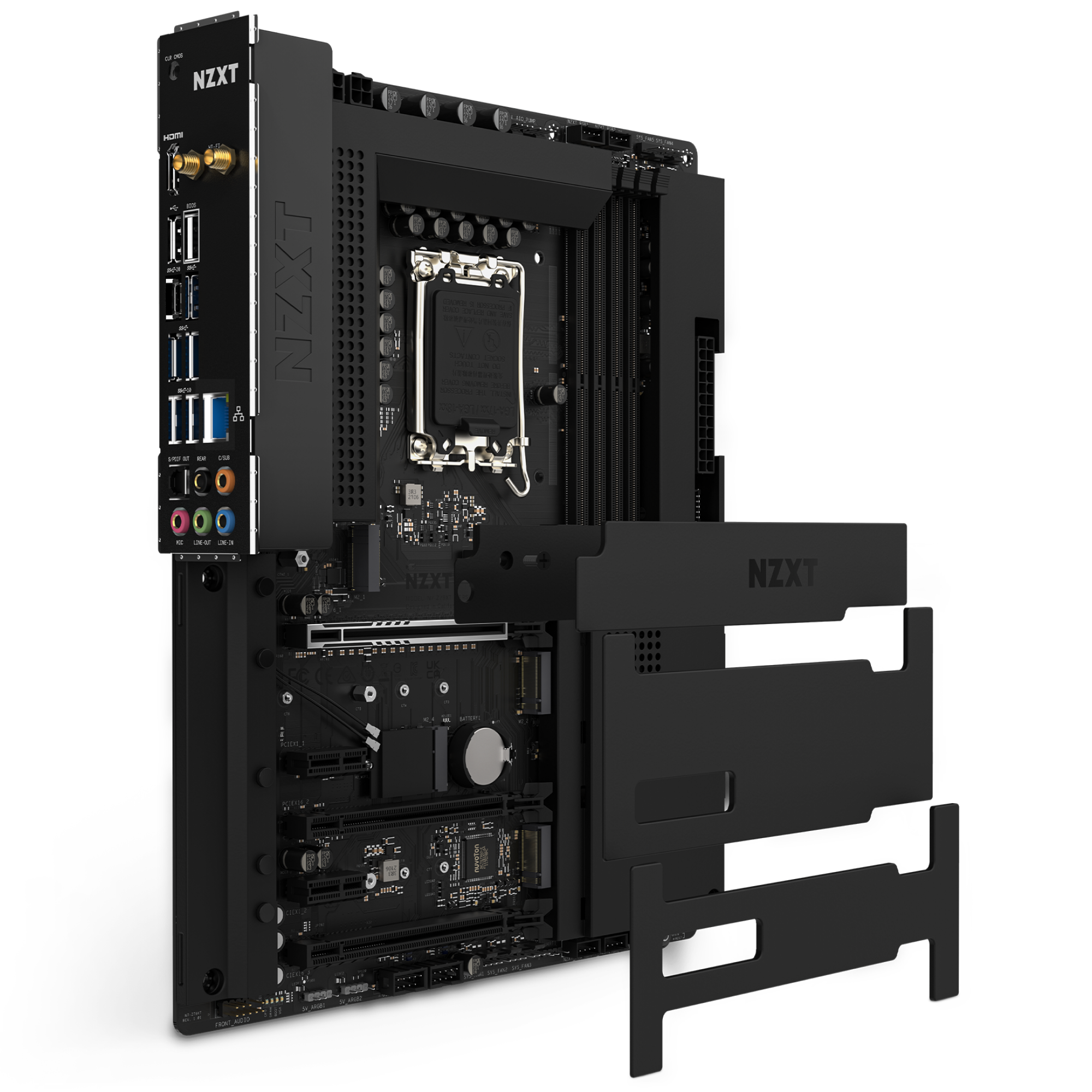

The NZXT N7 Z790 motherboard stands upright in black, featuring a large metal heatsink and shielding partially removed to show internal circuits, left-side connectivity ports, and RGB lighting support.

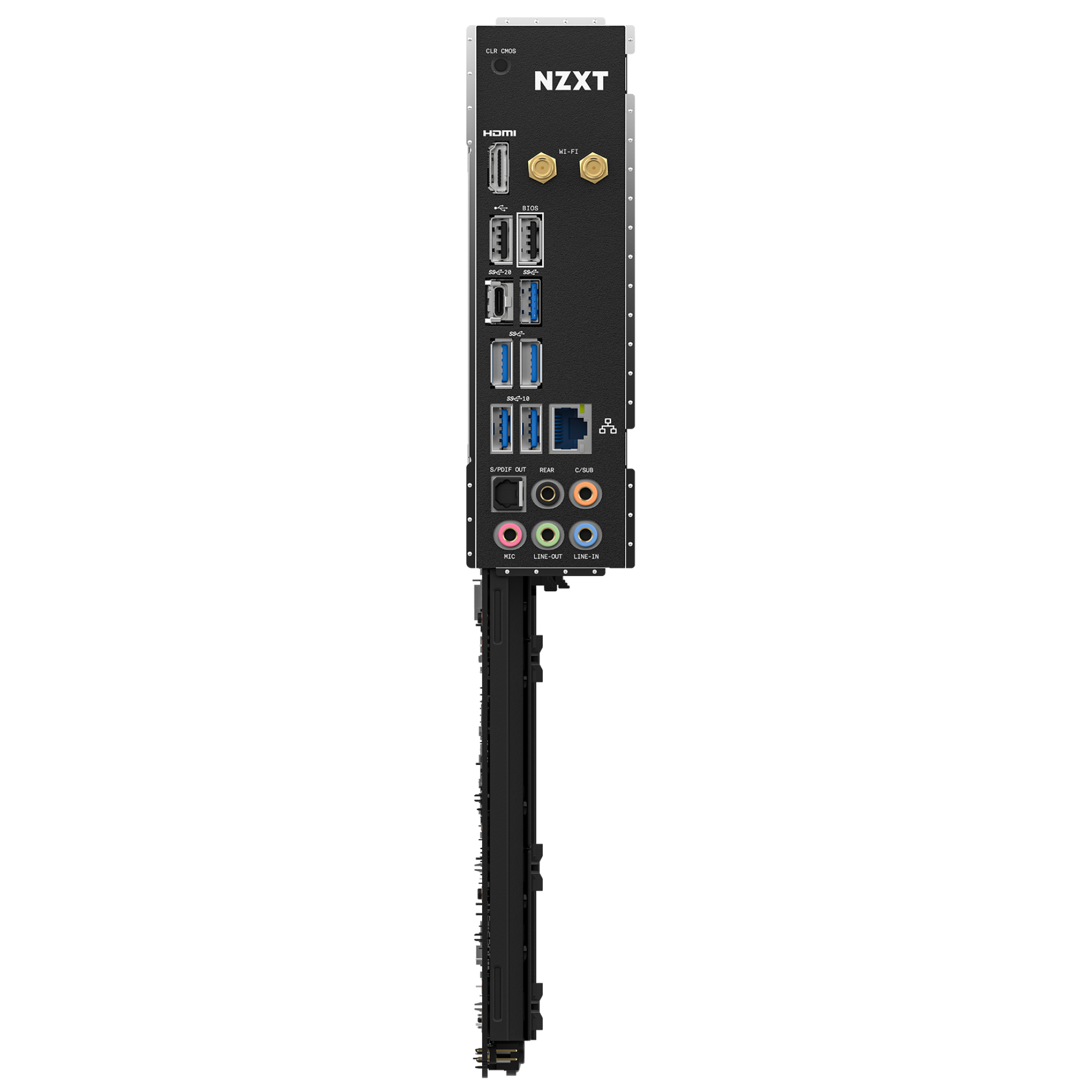

The NZXT N7 Z790 motherboard’s back panel features HDMI, USB, Ethernet, audio jacks, and antenna connectors in a vertical layout on a black surface and supports NZXT CAM software for RGB lighting control.
The NZXT N7 Z790 is a black ATX motherboard with multiple PCIe and RAM slots, an LGA 1700 socket, power connectors, various ports, a minimalist heatsink design, and support for NZXT CAM RGB lighting.

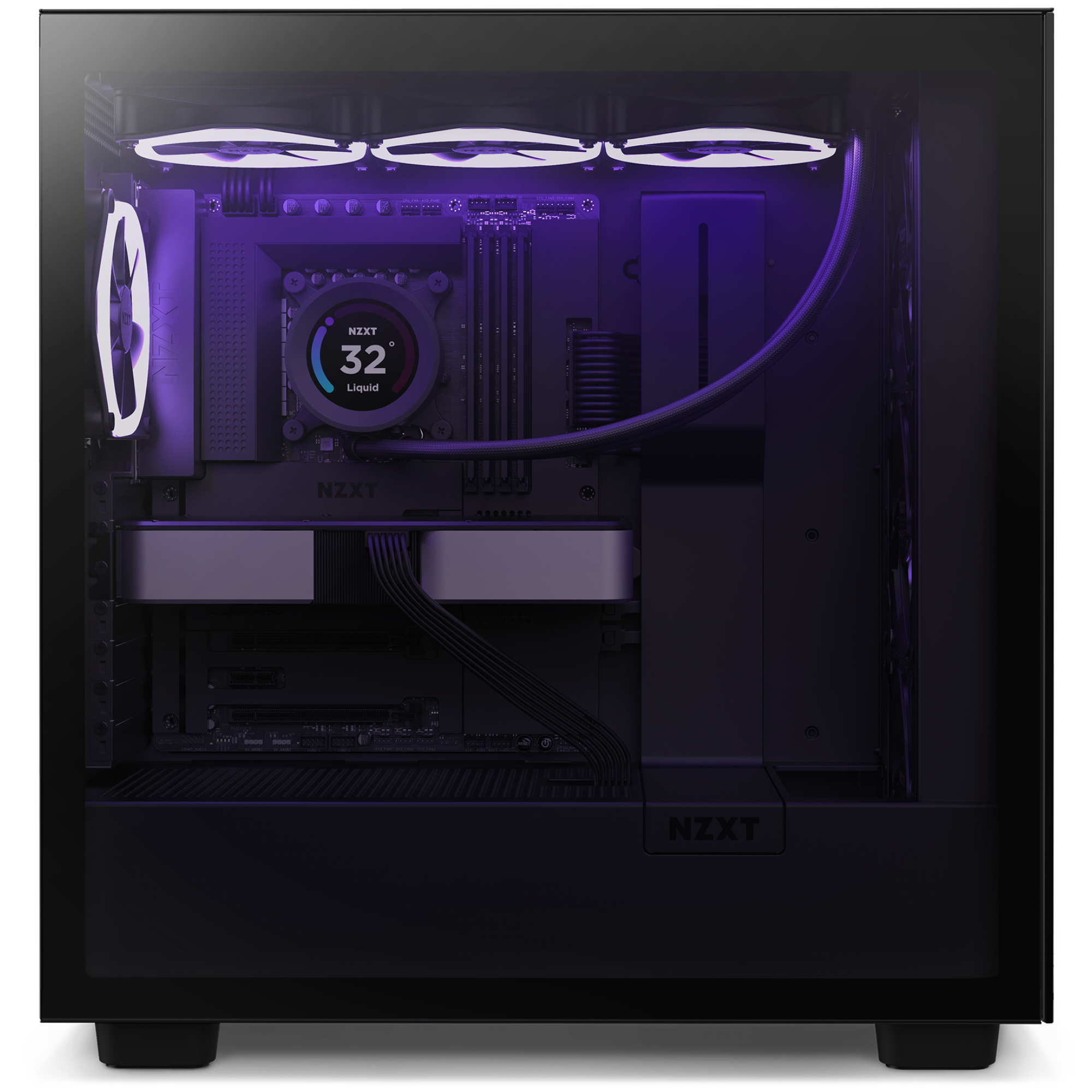

An NZXT gaming PC features the N7 Z790, RGB lighting, visible fans, liquid cooling at 32°C via NZXT CAM, and tidy cables in a black case with a clear side panel.

N7 Z790

4.0
Rated 4.0 out of 5 stars
4.0 Stars (3 Reviews)

Intel® Z790 ATX Motherboard

Angebot$299.99
Color:White
Notify Me

N7 Z790 Übersicht

Dieses Motherboard bietet einen optisch nahtlosen Hintergrund für jeden Build und alle Funktionen des neuen Intel Z790-Chipsatzes.

  • Vollständige Abdeckung in Schwarz oder Weiß und integrierter Heatspreader für den obersten M.2-Steckplatz
  • Zahlreiche Voreinstellungen und benutzerdefinierte Modi über NZXT-CAM-Software
  • Praktische Lüfterprofile in NZXT CAM für sieben unabhängige Lüfterkanäle
  • Integriertes I/O-Shield an der Rückseite und effizientes Layout für optimales Setup
  • Kompatibel mit Intel® Core™ i9-, Core™ i7-, Core™ i5-Prozessoren der 12. 13. und 14. Generation
  • 16+1+2 DrMOS Power Phase Design mit 2 Unzen Kupfer-PCB
  • Entwickelt mit Intel® Z790 Express Chipset mit Wi-Fi 6E-Drahtloskonnektivität und Bluetooth V5.3
  • Drei M.2-Steckverbinder für Speichergeräte
  • Unterstützt Arbeitsspeicher-Übertaktung bis 6000 MHz und Intel® XMP 3.0
  • 8-Kanal-HD-Audio
Technische Daten
CPU & Sockel
Sockel
LGA 1700 für Intel® 14., 13. und 12. Gen. Core™ i9/i7/i5 Prozessoren
Intel® Hybrid Technology
Unterstützt
Turbo Boost Max 3.0
Unterstützt
Intel® Thermal Velocity Boost (TVB)
Unterstützt
Intel® Adaptive Boost Technology (ABT)
Unterstützt
Chipsatz
Intel®
Z790
Speicher
DIMM-Steckplätze
4, nur DDR5
Max. Speicher
192 GB, DDR5
Speicherarchitektur
Dual-Channel
OC-Frequenz
7200+ (O.C.)
Intel® XMP 3.0
Unterstützt
Erweiterungssteckplätze
PCIe 5.0 ×16 (PCIEX16_1)
1 (NVMe SSD als Bootlaufwerk unterstützt)
PCIe 4.0 ×16 (PCIEX16_2 & PCIEX16_3)
2 (NVMe SSD als Bootlaufwerk unterstützt)
PCIe 3.0 ×1 (PCIEX1_1 & PCIEX1_2)
2 (NVMe SSD als Bootlaufwerk unterstützt)
M.2 Socket (Key E)
1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi Modul & Intel® CNVi/CNVi 2)
Speicheranschlüsse
M.2_1
2242/2260/2280 (PCIe 4.0 ×4)
M.2_2
2242/2260/2280/22110 (PCIe 4.0 ×4)
M.2_3
2242/2260/2280 (PCIe 4.0 ×4 & SATA 6Gb/s)
SATA 6Gb/s Ports
4
Intel® VMD
Unterstützt
NVMe SSD als Bootlaufwerk
Unterstützt
LAN
Realtek®
RTL8125BG 2.5G LAN
Wireless
Tri-Band Wi-Fi 6E
Unterstützt
Bluetooth
V5.3
Audio
Realtek®
ALC1220 Codec
Rear I/O
Wi-Fi SMA Antennenanschlüsse
2
HDMI™ Port
1
USB 2.0
2
USB 3.2 Gen 2×2 Type-C
1
USB 3.2 Gen 2
2
USB 3.2 Gen 1
3
Clear CMOS Button
1
LAN (RJ45) Port
1
Audio-Buchsen
5
Optical S/PDIF Out
1
Interne I/O
24-Pin ATX Stromanschluss
1
8+4-Pin ATX 12V Anschluss
1
4-Pin CPU_FAN
1
4-Pin AIO_PUMP
1
4-Pin SYS_FAN
5
NZXT RGB LED
4
5V ARGB LED
2
USB 2.0 Header
2 (bis zu 4 Ports)
USB 3.2 Gen 1 Header
1 (bis zu 2 Ports)
USB 3.2 Gen 2×2 Front-Header
1 (Type-C)
Frontpanel Audio
1
Power Button
1
Reset Button
1
POST LEDs
4
Allgemein
Betriebssystem
Windows® 11/10 64-Bit
Formfaktor
ATX
Garantie
3 Jahre
Modellnr. (Weiß)
N7-Z79XT-W1
Modellnr. (Schwarz)
N7-Z79XT-B1
UPC (Weiß)
810074843003
UPC (Schwarz)
810074843010
EAN (Weiß)
5056547202945
EAN (Schwarz)
5056547202952
4.0
Rated 4.0 out of 5 stars
Based on 3 reviews
67%would recommend this product
Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 1 Total 1 star reviews: 0
Write a Review (Opens in a new window)
3 reviews
  • J
    JACOB
    I recommend this product
    Rated 5 out of 5 stars
    Aug 21, 2025
    FANTASTIC BOARD

    All in all its a motherboard.....it works. Its nice and looks good. ANYWHO.....UNDER THE (RESOURCES) TAB THAT YOU SEE ON THE PAGE THAT THIS IS REVIEW IS ON FOR THIS BOARD YOU CLICK RESOURCES TO THEN BE TAKEN TO A PAGE WHICH WILL SHOW YOU ALL OF THE LATEST BIOS AND DRIVER UPDATES FOR THIS BOARD ALONG WITH DOCUMENTS. SO YES THEY DO SUPPORT THIS BOARD VERY WELL AND HAVE FROM THE BEGINNING PEOPLE JUST DONT LOOK HARD ENOUGH. SMH. GOOD BOARD PRICE IS AVG FOR THE MARKET IMO

    Was this helpful?
  • GS
    Garrett s.
    I recommend this product
    Rated 5 out of 5 stars
    Jul 19, 2025
    good looking

    great board when on sale haven't had any problems looks good in my black and white build and pairs perfectly with the t120 rgb.

    Was this helpful?
  • K
    Kai
    Verified Reviewer
    I do not recommend this product
    Rated 2 out of 5 stars
    Jun 29, 2025
    Absolutely crappy honest

    Visually, it is really top no. 1 clean without frills and most important thing about it. But Technical and Support Technically, it is so bad that I will never use a No Name Board again. Neither driver support nor any settings, especially except for the BIOS which is necessary, receives no updates and the page for this is now also hidden. In the beginning, it was so bad that it set wildly itself when changing BIOS settings, so that my CPU should theoretically have run at 86GHz, to which my front USB says goodbye every month, which has been proven to cause problems with the mainboard, as a CMOS reset helps. In short: high price, no good update support, unstable. But not visually beautiful anymore.
